Inogen Rove 4 setup & quick start guide

Updated

Inogen Rove 4 setup video

Inogen Rove 4 getting started instructions

Step 1

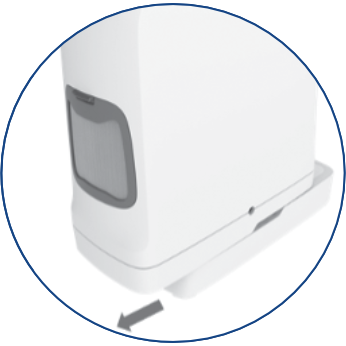

Slide on a compatible battery and make sure your concentrator is in a well-ventilated location.

Inogen Rove 4 OxyGo Fit Plus Set Up Step 1

Step 2

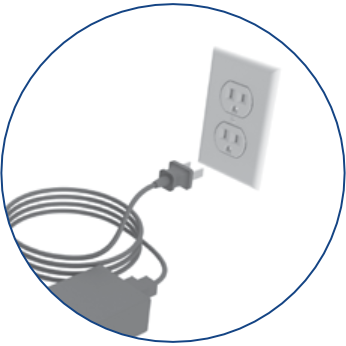

Connect your concentrator to AC power.

Inogen Rove 4 OxyGo Fit Plus Set Up Step 2

Step 3

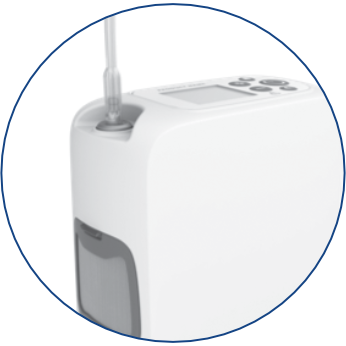

Connect an appropriate cannula to your concentrator.

Inogen Rove 4 OxyGo Fit Plus Set Up Step 3

Step 4

Press and hold the power button to turn on the concentrator.

Inogen Rove 4 OxyGo Fit Plus Set Up Step 4

Step 5

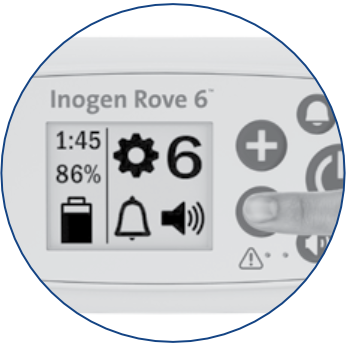

Set the flow setting to the rate prescribed by your clinical professional. Use the “+” and “-“ buttons to adjust the flow setting.

Note: The flow is a “dose” of oxygen (the setting will be prescribed by your clinical professional).

Inogen Rove 4 OxyGo Fit Plus Set Up Step 5

Step 6

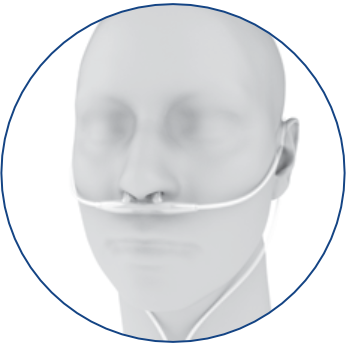

Position the nasal cannula on your face and breathe normally through your nose. A green light will flash each time a breath is detected.

Inogen Rove 4 OxyGo Fit Plus Set Up Step 6
